THÔNG SỐ KỸ THUẬT
* Sản phẩm: Bo mạch chủ
* Tên Hãng: ASUS

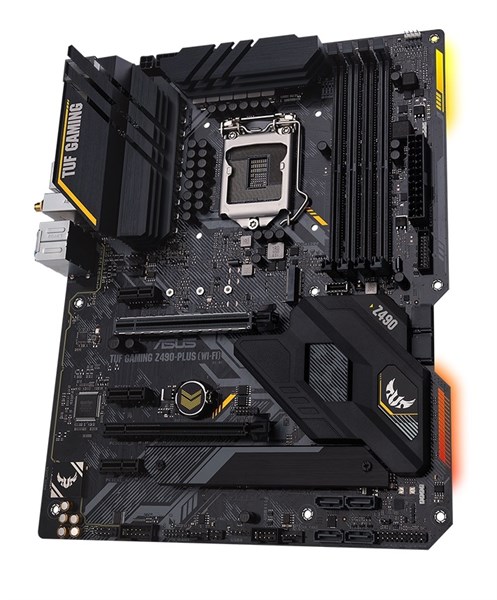

* Model: TUF Gaming Z490-PLUS (WI-FI) LGA1200
* CPU hỗ trợ: Intel
* Chipset: Z490
* RAM hỗ trợ: 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)
/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
* Khe cắm mở rộng
– Intel® 10th Gen Processors
– 1 x PCIe 3.0 x16 (x16 mode)
– Intel® Z490 Chipset
– 1 x PCIe 3.0 x16 (x4 mode)
– 3 x PCIe x1
* Ổ cứng hỗ trợ
– Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports-
– Intel® Z490 Chipset :
– 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
– 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
– 6 x SATA 6Gb/s port(s)
* Cổng kết nối (Internal)
– 1 x CPU Fan connector(s)
– 1 x CPU OPT Fan connector(s)
– 3 x Chassis Fan connector(s)
– 1 x AIO_PUMP connector
– 2 x Aura RGB Strip Headers
– 1 x Addressable Gen 2 header(s)
– 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
– 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
– 1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s)
– 2 x M.2 Socket 3
– 6 x SATA 6Gb/s connector(s)
– 1 x Thunderbolt header(s)
– 1 x 24-pin EATX Power connector(s)
– 1 x 8-pin ATX 12V Power connector(s)
– 1 x 4-pin ATX 12V Power connector(s)
– 1 x Front panel audio connector(s) (AAFP)
– 1 x System panel(s) (Chassis intrusion header is inbuilt)
– 1 x Clear CMOS jumper(s)
– 1 x COM port header
– 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
*Cổng kết nối (Back Panel)
– 1 x PS/2 keyboard/mouse combo port(s)
– 1 x DisplayPort
– 1 x HDMI
– 1 x LAN (RJ45) port(s)
– 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
– 4 x USB 3.2 Gen 1 (blue) Type-A
– 1 x Optical S/PDIF out
– 5 x Audio jack(s)
– 1 x ASUS Wi-Fi Module
* LAN / Wireless
* Intel® I219-V 1Gb Ethernet
* TUF LANGuard
* Kích cỡ
– ATX Form Factor
– 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
